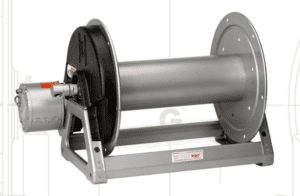

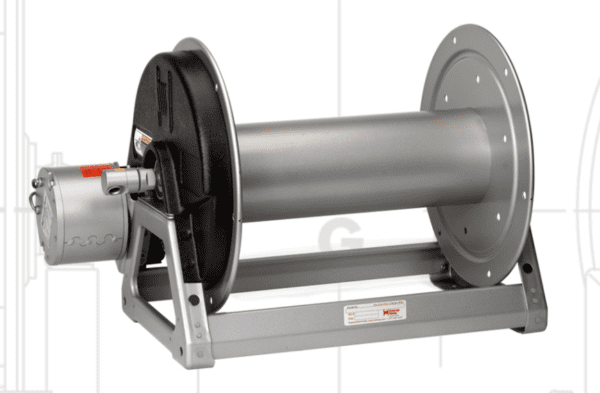

Hannay SNC12-E Electric Hose Reel

Description

Non-Corrosive Power Rewind 12″ Hose Reel

To handle single 3/8″ through 5/8″ I.D. hose
Lawn Care / Pest Control / Pressure Washing / Agriculture / High Pressure / Horticulture

• Lightweight, low-profile reels designed for hose lengths up to 500 ft.
• Primarily 304 SST construction, including discs, axle hub and welded frame.
• Non-SST components: Drum (Aluminum), Swivel Joint, Bearings (Plated).
• Manual (direct crank) reels include both pin lock and 3-position cam-lock drag brake.
• Electric rewind reels (denoted by letter ‘E’ at end of model) feature plated chain/sprocket drive with guard.
• Standard inlet: 90° full-flow swivel, 1/2″ FNPT threads. Standard outlet: 1/2″ FNPT threads.
• Standard pressure rated to 3000 psi (207) bar. Higher pressures available, consult factory.
• Optional aluminum stackable frame available (for manual rewind reels).
• Optional SST rollers and roller mounting brackets.
•

SHIPS TRUCK FREIGHT. CALL FOR QUOTE.
